Thread Number: 3019
Electrolux Model S - CHECK THIS OUT!! 		[Down to Last]
Post# 33435   2/27/2008 at 14:43 (6,236 days old) by logan ()

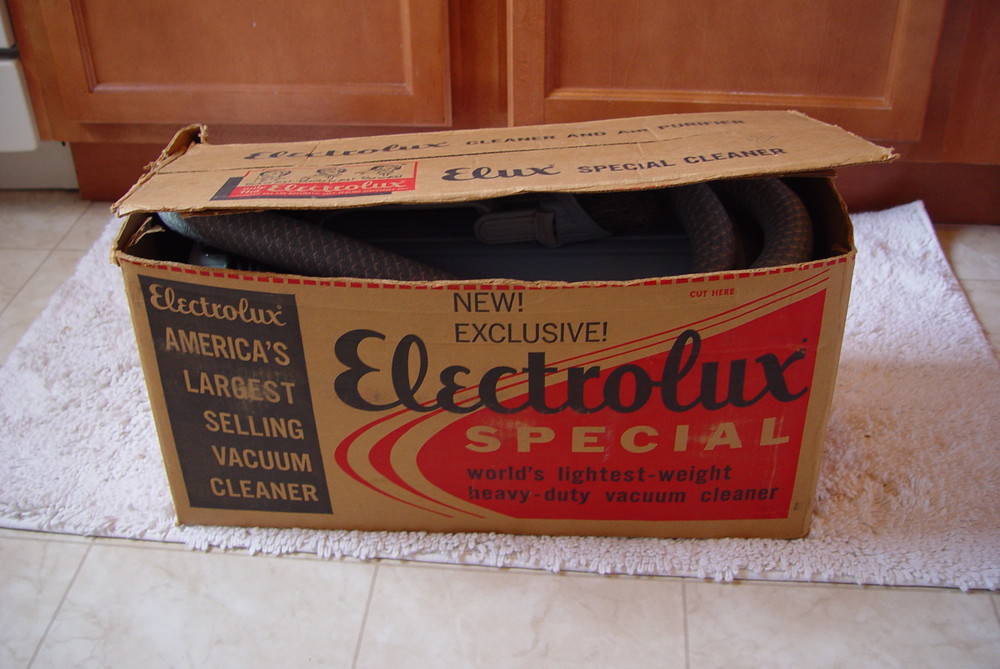

A local vacuum shop called me and said a person traded in an old Electrolux on a Miele today and it still has the original box. So I went to the store and my jaw dropped and I literally messed my pants when I saw that it was a Model S. My face still has a grin on it from excitement!!! They gave it to me. This thing has the original box, owner's manual, attachments, etc. EVERYTHING! It is in mint condition and the hose does NOT leak at all. I guess the vacuum gods were looking over me today too... :-)

I just have to show some pictures.

Post# 33436 , Reply# 1   2/27/2008 at 14:44 (6,236 days old) by logan ()

Another box photo...

Post# 33437 , Reply# 2   2/27/2008 at 14:45 (6,236 days old) by logan ()

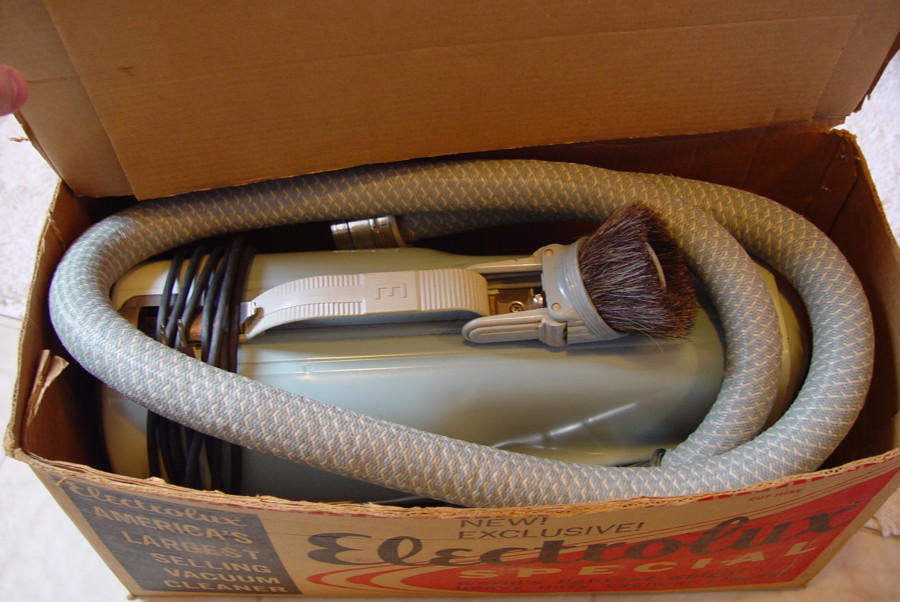

This is a sneak preview :-)

Post# 33438 , Reply# 3   2/27/2008 at 14:45 (6,236 days old) by logan ()

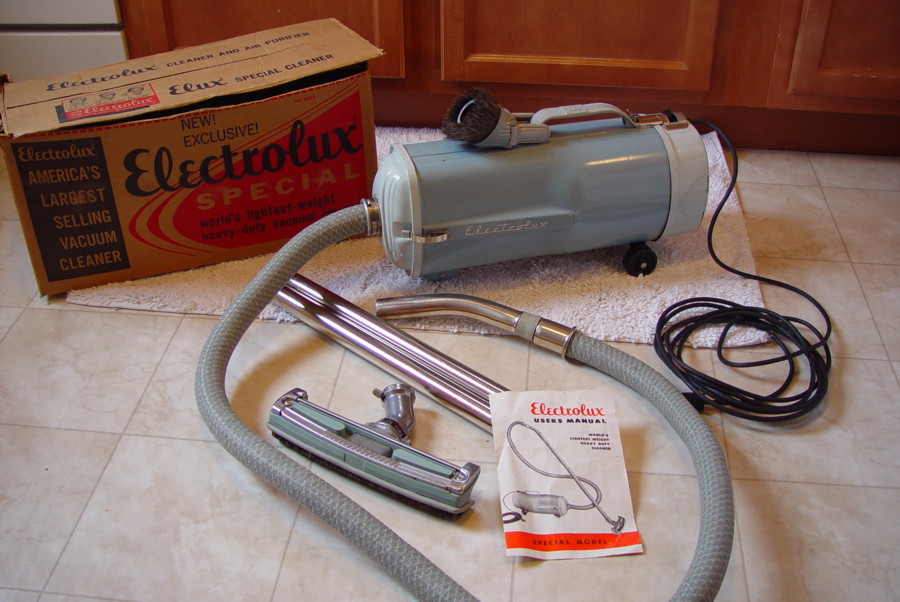

Here is the spread...

Post# 33439 , Reply# 4   2/27/2008 at 14:46 (6,236 days old) by logan ()

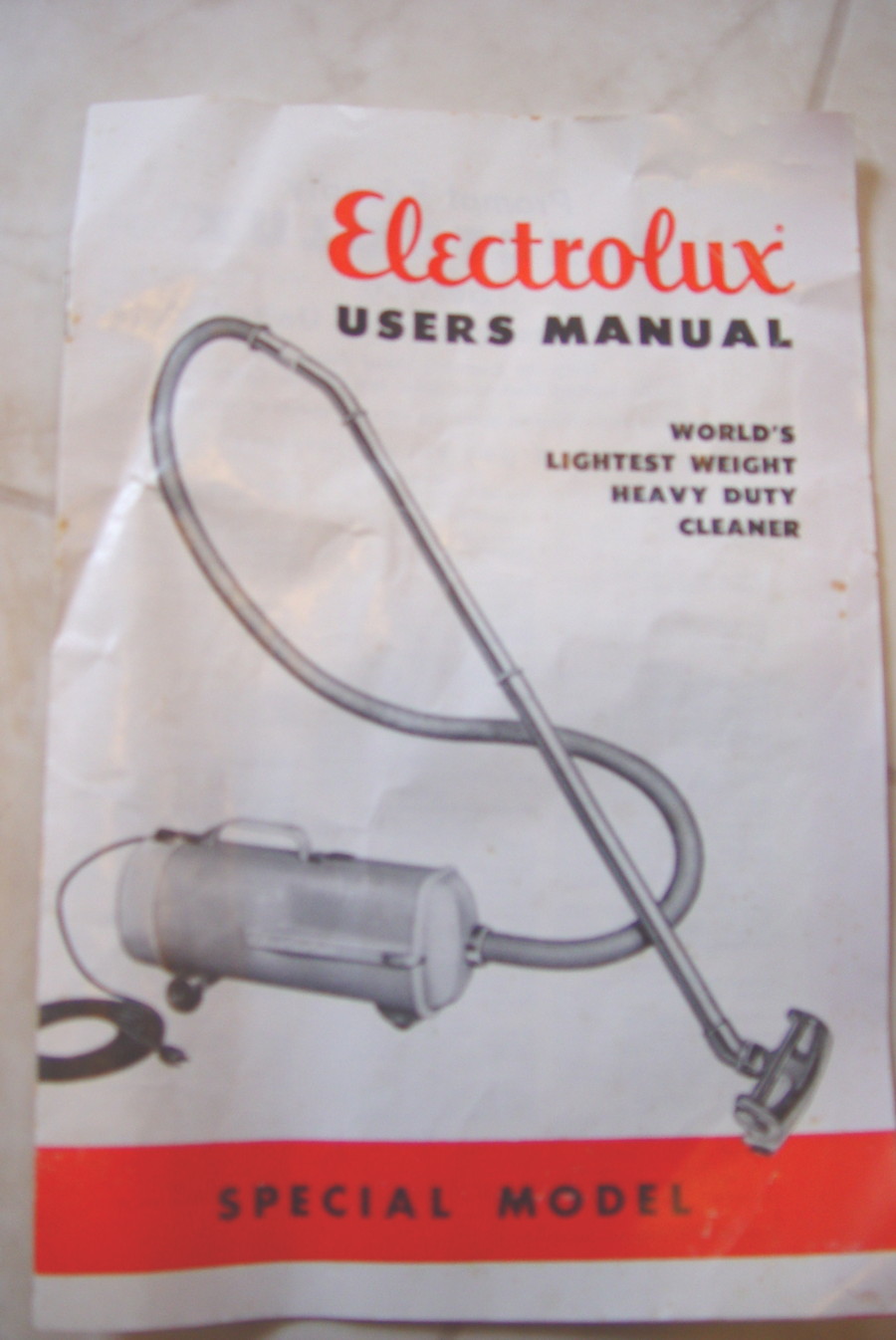

Owner's manual cover

Post# 33440 , Reply# 5   2/27/2008 at 14:47 (6,236 days old) by logan ()

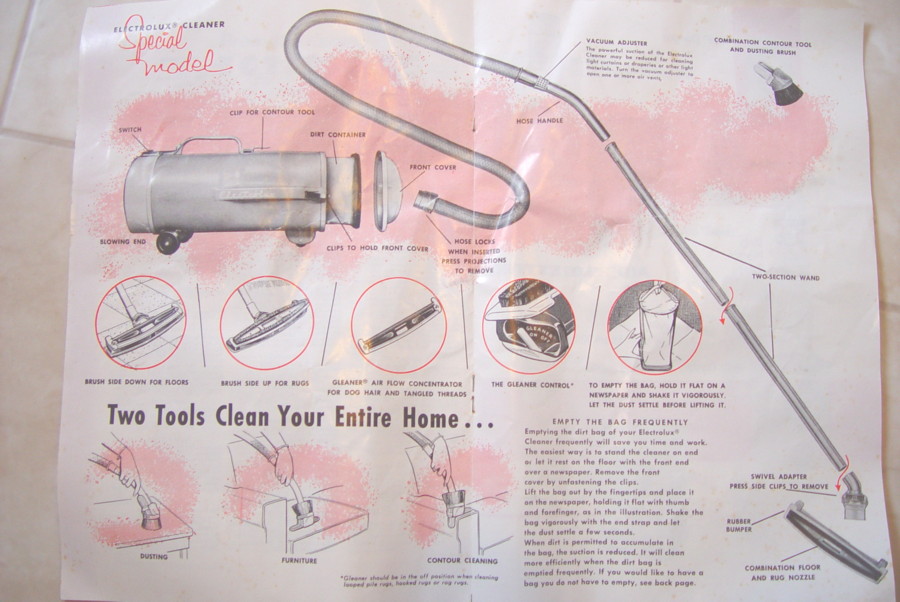

Inside the owner's manual. Notice how this vacuum did not come with a crevice tool....

Post# 33441 , Reply# 6   2/27/2008 at 14:49 (6,236 days old) by logan ()

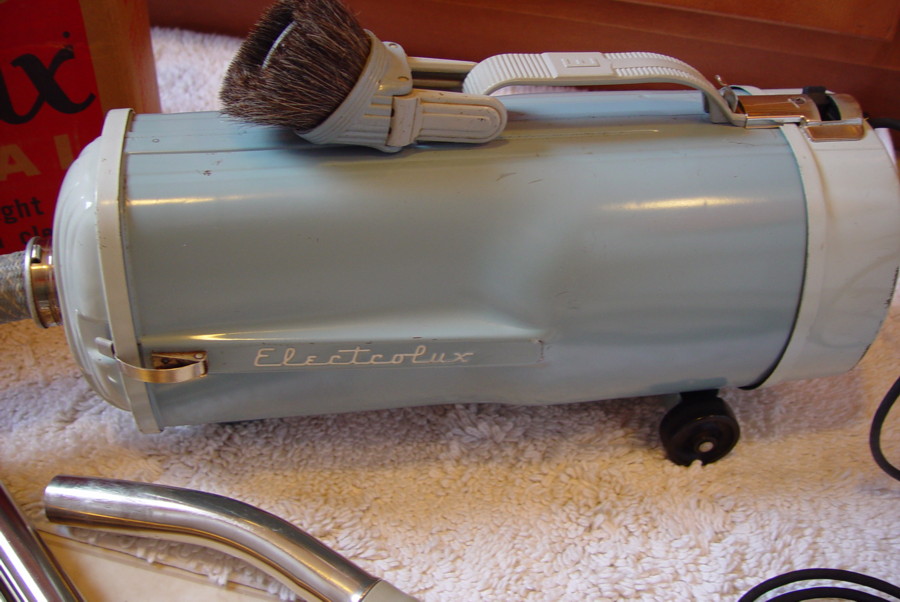

I still can't believe I got this vacuum today.


Post# 33442 , Reply# 7   2/27/2008 at 15:29 (6,236 days old) by charles~richard ()

WOWWWWWWWWWW Logan what a find!!! I know you've been dying for one of these! See, sometimes the Vacuum Genie just comes out of nowhere with a wondrous prize!

I note a couple of interesting things about this.

Look at the floor tool.

First, it has a locking-neck swivel connector, which of course first came on the AE but was not offered with the E or early S.

This is the second S that I've seen with that style swivel connector (I have one), BUT, the one I have also has the late Model F style floor tool, where there is a long, narrow air channel instead of the rectangular opening in the middle and the two plastic 'fingers.'

Also, the lock release on the swivel connector has a rubber covering, again, which did not come out until the Model F.

You will note that the illustration in the instruction pamphlet shows the non-locking swivel connector and early-style rug tool.

Just another example of how Electrolux's developments came gradually and not all at once.

C O N G R A T U L A T I O N S ! ! !

Post# 33443 , Reply# 8   2/27/2008 at 15:37 (6,236 days old) by arh1953 ( River Park, in Port St. Lucie, Florida)

arh1953's profile picture
What generous people they are at that shop! I love it! I know what a thrill that has to be. I'm sure you could dig up a crevice tool for it. I guess that was part of the economy.

Post# 33445 , Reply# 9   2/27/2008 at 15:46 (6,236 days old) by charles~richard ()

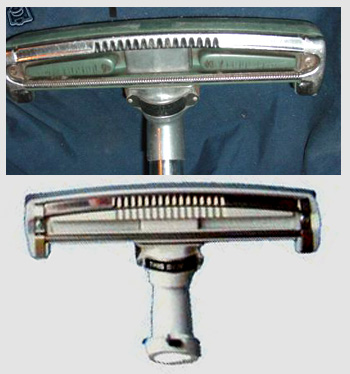

Electrolux Early and Late Floor Tools

 Here's a comparision photo I've been meaning to post ever since the subject came up some time ago.

The tool at the top is the earliest-style. The plastic fingers on either side of the suction opening were an evolutionary step from the XXX/LX/LXI tool which had a removeable device called the "tuftor" for using on small rugs. It had two clear yellow plastic fingers like the ones you see in this rug tool, joined in the middle by a springy steel collar. You would snap the tuftor inside the rug side of the floor tool.

For some reason, when the E came out, they did away with the long, narrow suction channel on the rug side, opting instead for the "permanent Tuftor."

At some point, it must have occurred to someone that this was not a good idea, so they went back to the long narrow air channel with the late Model F tool and added a second row of "grooming ridges."

This is the same basic style as the XXX/LX/LXI except that the suction opening in the middle of the channel is larger.

Other evolutionary changes --

. early swivel connector stated "Electrolux - Top"

. later swivel connector (late AF) stated This Side Up - Electrolux"

. locking neck on the swivel connector

. rubber tip on unlocking lever

. rubber bumper all around

. with Model G, the "gleaner" - a thin metal bar smooth on one side and little teeth on the other - was done away with and replaced with a finely-ridged bar that did not reverse.

. with Silverado, metal swivel connector became plastic. Much flimsier and does not stand up to vigorous use.

n.b. the bare-floor side of all the combination tools is the same other than the color of the paint in the middle area.

Post# 33446 , Reply# 10   2/27/2008 at 16:05 (6,236 days old) by crevicetool (GA )
Logan.....

 That is just fantastic!!!!! I could not be happier for you. The box and all....incredible!!!

Rick

Post# 33447 , Reply# 11   2/27/2008 at 16:07 (6,236 days old) by crevicetool (GA )
I was looking back on the

pics. Does the manual mention disposable bags?

Post# 33450 , Reply# 12   2/27/2008 at 16:33 (6,236 days old) by ericaustin (Dallas, TX)

Logan WHAT A FIND CONGRATS!!

Post# 33464 , Reply# 13   2/27/2008 at 17:14 (6,236 days old) by nick7764 ()
Awesome

 find Logan!! Congratulations! The box, manual, and such great condition! WOW. :)

Post# 33492 , Reply# 14   2/27/2008 at 22:27 (6,236 days old) by normvac (COLUMBUS, OHIO)

Wow Logan, I'm so happy for your free and complete find that I feel like I found it too!
Crazy me !
Norm

Post# 33493 , Reply# 15   2/27/2008 at 22:35 (6,236 days old) by hoover28 (Oneida N.Y.)
wow good find

 glad you found one.


Chris

Post# 33494 , Reply# 16   2/27/2008 at 23:02 (6,236 days old) by hygiene903 (Galion, OH)
Great Find Logan!

 hygiene903's profile picture
And the original carton and manual are like frosting on the cake! The vacuum itself looks like it's been well cared-for, or hasn't seen much use. And you got it for free? WOW!!
Congratulations,
Jeff

Post# 33495 , Reply# 17   2/27/2008 at 23:35 (6,236 days old) by luxg ()

Logan, that is a beautiful machine. It is so neat that you have the orginal box and the direction book. That just seems to make the machine complete.

Post# 33521 , Reply# 18   2/28/2008 at 16:13 (6,235 days old) by logan ()
Disposable Bags

 Crevicetool:

Yes on the very back of the manual there is a small advertisement for the "Automatic Self-Sealing Disposable Bags." It says you can purchase them from your "friendly Electrolux salesman". Get this....you could get 18 bags for $3.45!! Man how times have changed...

There is also an advertisement for Electrolux house cleaning products like Insect Killer, Window Cleaner, and Furniture Polish. Now I would LOVE to find a bottle of Electrolux Furniture Polish. :-)

Post# 33532 , Reply# 19   2/28/2008 at 17:59 (6,235 days old) by charles~richard ()

Logan, I assume this has the heavy steel wands, right? All the Ss I have seen have --

btw, have you ever seen the other S hose? Same color combination, difference is that the weaving pattern is pairs of stripes in straight lines instead of the chevron pattern.

Post# 33535 , Reply# 20   2/28/2008 at 18:14 (6,235 days old) by andy (Boston, MA)

Wow Logan! I can't get over how nice that machine is. And the colors on the box are still so vivid! Big congrats

Post# 33549 , Reply# 21   2/28/2008 at 20:23 (6,235 days old) by logan ()

Andy: I am going to bring it with me to St. Louis/Springfield next week. We can try it out against one of your new Mieles! Of course the Miele will win, but it will still be fun...!

Charlie: Yep it has the heavy steel wands. I don't like using them, they are just too heavy. I used the lighweight aluminum wands off a Model G when I used it today. Much easier to use. No I have not seen the other S hose. Do you have a picture of one?

Post# 33557 , Reply# 22   2/28/2008 at 21:43 (6,235 days old) by danemodsandy ()
Congrats and Question for Charlie

 Logan:

That is a seriously nice machine, and I'm glad it found such a perfect owner!

Charlie:

Since you're more hands-on familiar with every Lux model than I am, maybe you'll know the answer to something that crosses my mind every time I see a Model S. Was that body re-used for the L, with a different bag door setup and the addition of the halo? Looks awfully close to me, but you're the expert.

Post# 33568 , Reply# 23   2/29/2008 at 00:36 (6,235 days old) by charles~richard ()

LOGAN:

I'll have to get the S hose out - it's stored in one of my half-dozen leatherette hampers, which I use for hose storage. As I said, it has the same colors as the one you have there, but instead of the v-shaped "chevron" pattern in the weaving, it stripes in pairs about 1/4" apart then each pair about 1 in. from its neighbors. It's same spacing and configuration as the R, G, 1205, L, etc., but different colors.


SANDY:

While the S body is somewhat similar to the L, it is different. It's a bit shorter for one thing. Same for the R, which -is- the same as the S with the re-addition of a halo or optional cord winder.

If you saw the S/R and L side by side you'd see the differences.

Post# 33598 , Reply# 24   2/29/2008 at 13:28 (6,234 days old) by watsonw (Newport, Shropshire, UK)

Hello Logan from the UK,

what a lovely 'complete' find............I have only ever once seen one of those substantial and ingenious carpet/floor of what I only assume is an exclusive American design.....I bet it works very well with that design of machine.....congrats.....finding a 'cardboard boxed' box & machine together in the UK is now very rare !!!

Regards, Walter.

Post# 33635 , Reply# 25   2/29/2008 at 21:48 (6,234 days old) by scott55405 ()

Logan that rocks! Another great find! Thanks for the awesome pix and I'll drop you a line later!

Post# 33714 , Reply# 26   3/1/2008 at 17:42 (6,233 days old) by logan ()
Sandy

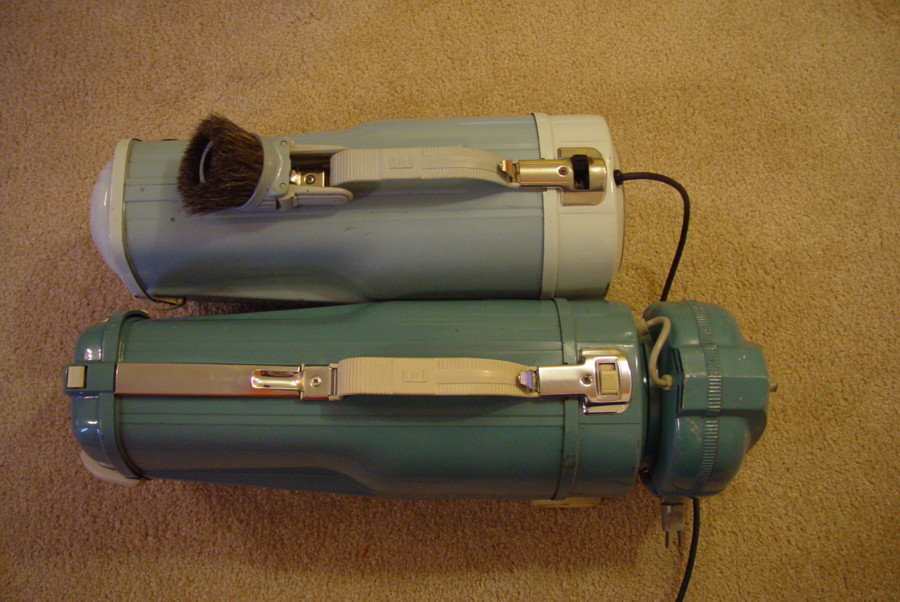

 Here is a Model S and Model L side by side comparison. You can see they are very similar, but the L is longer.

Post# 33715 , Reply# 27   3/1/2008 at 17:56 (6,233 days old) by arh1953 ( River Park, in Port St. Lucie, Florida)

arh1953's profile picture
Your L is a carbon copy of my mom's vacuum. It had its motor changed because she used off brand bags in it, according to the Electrolux man. I'm still surprised she bought the model with the cord reel.

Post# 33716 , Reply# 28   3/1/2008 at 18:01 (6,233 days old) by logan ()

Yeah Electrolux would say the motor went bad from not using "their" bags. The off brand 4 ply Electrolux bags are just as good as the genuine bags. Regardless of what Electrolux says. They just want you to buy from them not anyone else! :-)

Post# 33718 , Reply# 29   3/1/2008 at 18:10 (6,233 days old) by arh1953 ( River Park, in Port St. Lucie, Florida)

arh1953's profile picture
That's what I believe Logan, but we never had the problem again after the motor change. I have some "off brand" bags I'm going to try on my 1453.

Post# 33724 , Reply# 30   3/1/2008 at 19:11 (6,233 days old) by logan ()

1453? Is that the Silverado? Sorry, I'm not really that good with the model numbers. :-)

Post# 33729 , Reply# 31   3/1/2008 at 22:16 (6,233 days old) by elux89 ()

I think the Silverado is a 1505. The 1453 is the special edition (economy model) of the silverado????

Post# 33777 , Reply# 32   3/2/2008 at 07:03 (6,233 days old) by arh1953 ( River Park, in Port St. Lucie, Florida)

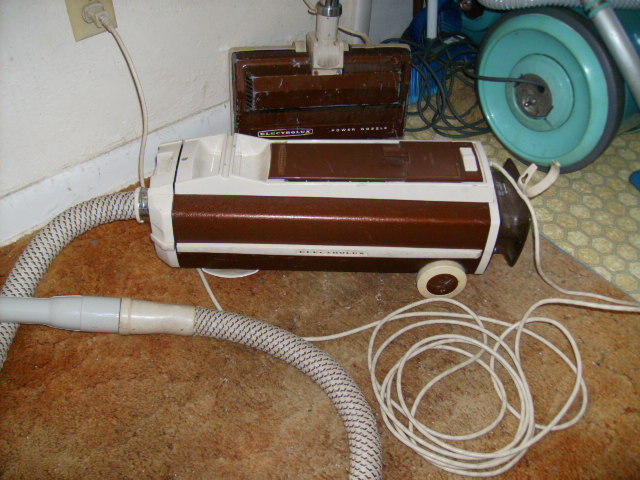

Here's the 1453

 arh1953's profile picture
This is an old shot of 1453:

Post# 33786 , Reply# 33   3/2/2008 at 08:40 (6,233 days old) by logan ()

Oh ok, it's the Olympia Special! Thanks for the photo.

Post# 33790 , Reply# 34   3/2/2008 at 09:31 (6,232 days old) by elux89 ()

The 1453 also came in the gray color like the silverado. From my repair manual, the 1453 had a motor more similar to the 1205 than a SJ

Post# 33791 , Reply# 35   3/2/2008 at 09:35 (6,232 days old) by elux89 ()

See thread 2907 under contemporary vacs "electrolux special edition cannister" for pics of the gray colored version.

Post# 33800 , Reply# 36   3/2/2008 at 11:03 (6,232 days old) by logan ()

elux89:

You are right! The economy or "special" model came in 3 colors and is the vacuum the replaced the Model L:

Brown (like the Olympia)
Gray (like the Silverado)
Off-White (like the Diamond Jubilee).

Electrolux discontinued the vacuum after the Diamond Jubilee. They used the same smaller motor as the 1205 and 1205-J (less suction than the top of the line cleaners).

Post# 34230 , Reply# 37   3/7/2008 at 13:22 (6,227 days old) by laspirateur ()
Unbelievable!!!

 I love those machines. I have 3 of them and they are so perfect in their own bizarre short-sheeted little way. Thank you so much for posting pictures from the manual. I've never seen an S manual before.

I keep an Electrolux moth-ball vaporizer on the front of my S just to wrap the cord around. Ain't Kosher, but it works.

Post# 475412 , Reply# 38   2/3/2025 at 15:44 by Tom798 (Rustburg, VA)
Electrolux Model S

 Hi Logan- I have a Model S I use regularly for the past approximately 40+ years! My parents gave it to me & they bought it brand new! I'm wondering if ANYONE out there knows where I can find the motor number to hopefully purchase a new set of brushes. I'm seeing on Google Searches there is a tag somewhere on the vacuum. There are no tags of any kind on the vacuum cleaner.

Post# 475420 , Reply# 39   2/4/2025 at 09:31 by dysonman1 (the county)

dysonman1's profile picture
The information about the model S is engraved on the inside of the bag door. It uses the same motor as the Automatic F model, which are the standard Elux carbon brushes with the screw hole in the 90 degree flag

Post# 475433 , Reply# 40   2/4/2025 at 18:59 by Collector2 (Moose Jaw, Sk)

collector2's profile picture
Just an update to reply 36

The Special Edition came in 4 colours.

Brown to match the Olympia
Silver Grey to match the Silverado
Seal Grig / Jadestone to match the Diamond Jubilee
Seal Grig / Taupe to match the Marquis Delux

Part way into the Run of the Marquis it was replaced with the LE.
